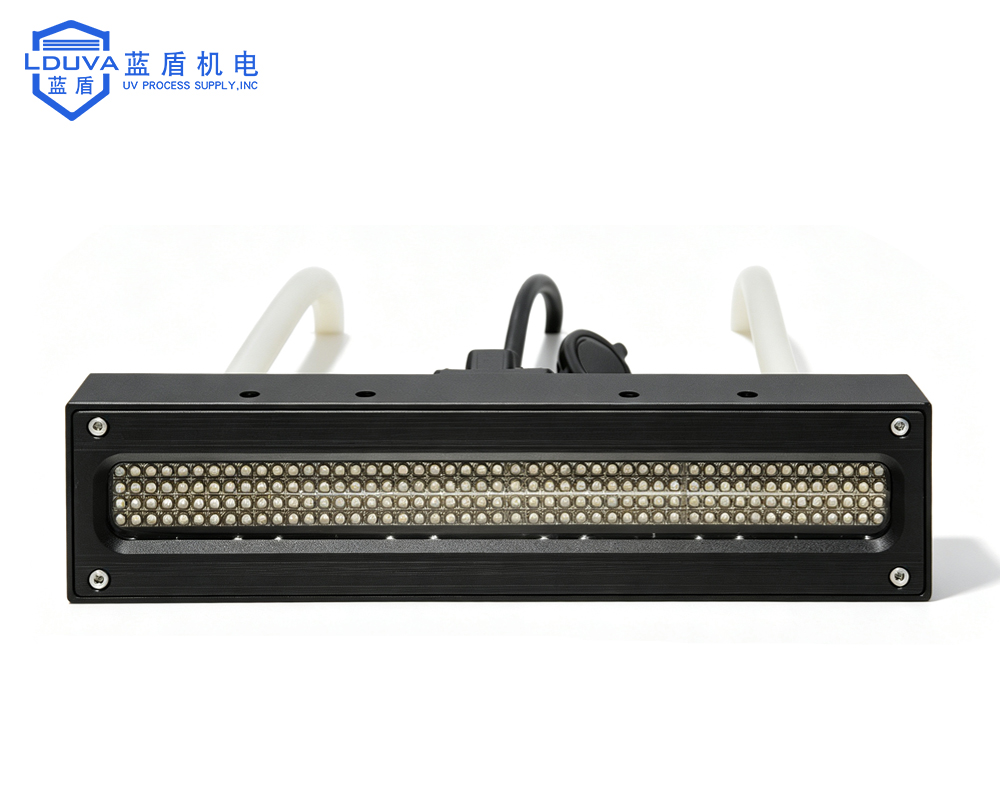

High power 395nm ink printing water-cooled UV LED curing system

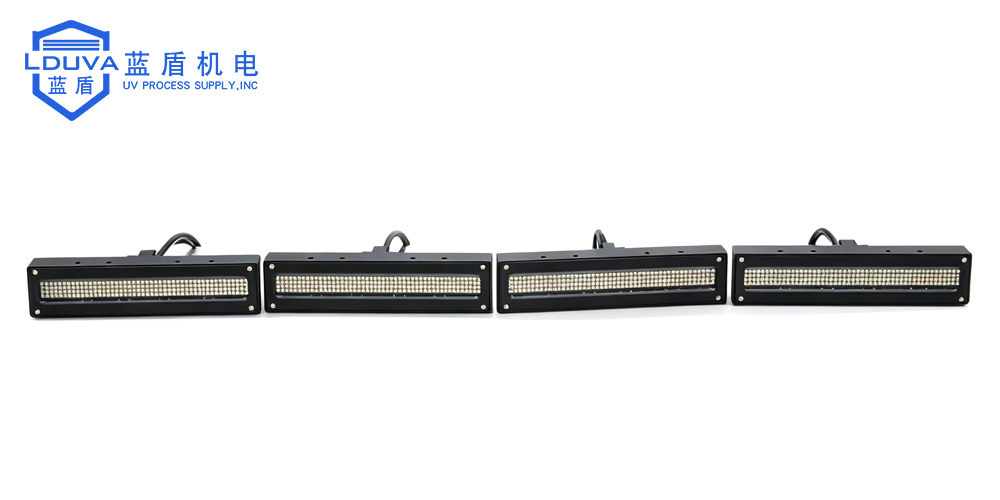

4 lamp head 395nm surface light source UV-LED curing lamp, specially developed for UV ink and UV varnish curing in screen printing, offset printing, and flexographic printing processes.
Sep 14th,2026 58 Views

Still enduring the problem of traditional UV lamps damaging printing substrates due to high temperatures?

Are you looking for a reliable and high-intensity UV curing solution for your ink printing production line? Blue Shield's one to four 200 × 20mm water-cooled UV LED curing system is designed specifically for high-speed, stable, and energy-saving curing of UV ink and varnish.



Product Features:

  • Ultra-high intensity 395nm UV wavelength, capable of penetrating most screen-printing UV inks for deep curing.

  • 4 lamp heads can be switched on/off independently, with continuously adjustable power for each channel, supporting single-channel or multi-channel simultaneous operation.

  • High-efficiency water-cooling heat dissipation, stable temperature control, over-temperature alarm, supporting industrial-grade 24-hour continuous uninterrupted operation.

  • Adjustable power for all 4 lamp heads, adapting to different process requirements.

  • Instant-on with no warm-up, greatly improving production efficiency.

  • Long-life eco-friendly light source, mercury-free and ozone-free for greater safety.

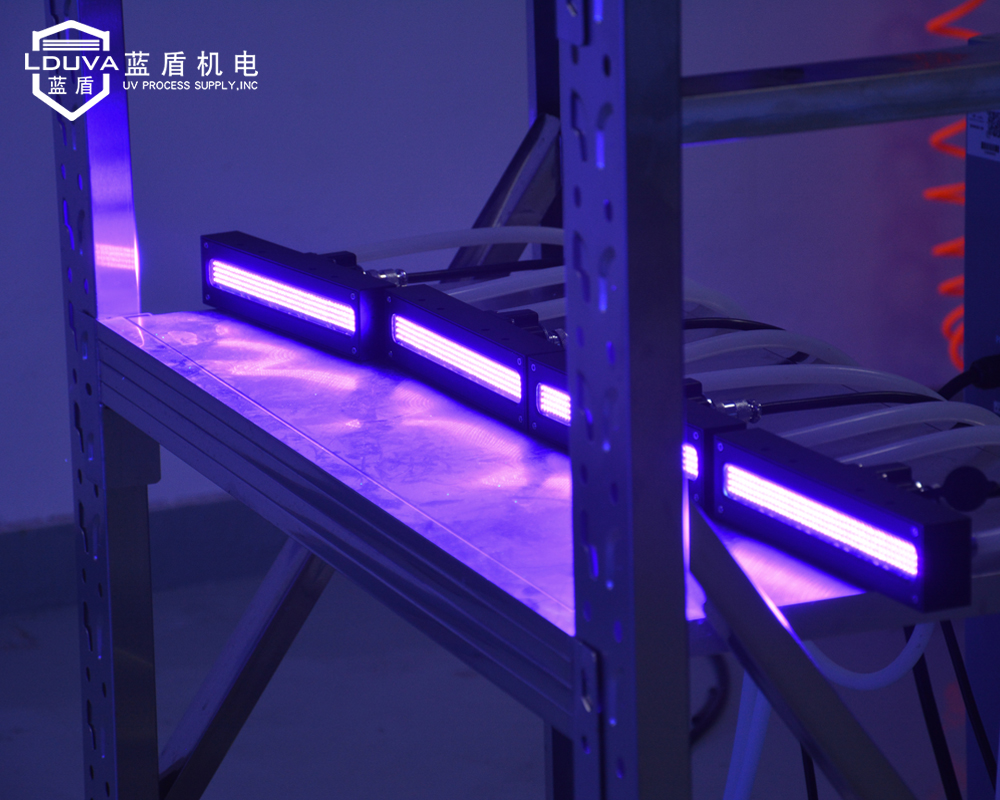

  • Flexible ceiling or bracket mounting, easy to operate.

Application Scenarios:

  • Screen printing, offset printing, flexographic printing.

  • UV ink and UV varnish curing.

  • Industrial coating and bonding applications.



Product Technical Parameters:

Item

Parameter

LED Type

UV LED

Wavelength

395nm

Emitting Area

200×20mm

Head Dimensions

220×50×60mm

Recommended Working Distance

15–20mm

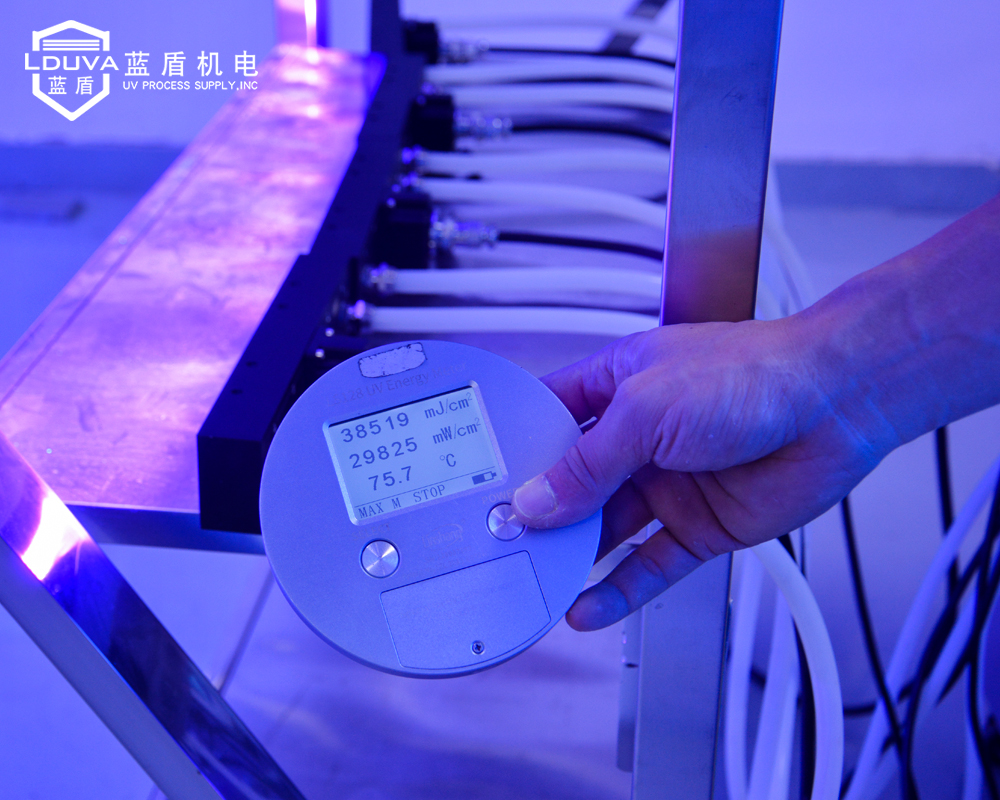

Intensity (0cm)

≥29,000 mW/cm²

Lamp Power

3.5KW

Chiller Dimensions

480×550×850mm

Chiller Power

1KW

Operating Temp./Humidity

0–45°C / ≤85% RH (non-condensing)


Whether it's selection consultation, technical issues, or customization needs, wavelength, spot size, power, control mode - can be customized according to needs.

Welcome to contact us, our team is always at your service.
