PCB circuit board fly wire fixation, pad bonding, solder mask curing, all operations are carried out on a compact UVLED workbench, accurately curing UV glue and solder mask ink in seconds, with zero thermal damage to PCB components.
This device is designed specifically for PCB repair and consists of an air-cooled 365nm UV-LED surface light source and an adjustable fixed bracket work platform. UV-LED cold light source is instantly on, ozone free, and mercury free. By using a positioning work platform, the instability of handheld operations can be eliminated, achieving repeatable and consistent curing of PCB solder mask repair, circuit protection adhesive, and electronic component bonding. Suitable for PCB repair, electronic factories, and small batch sampling in laboratories.
-

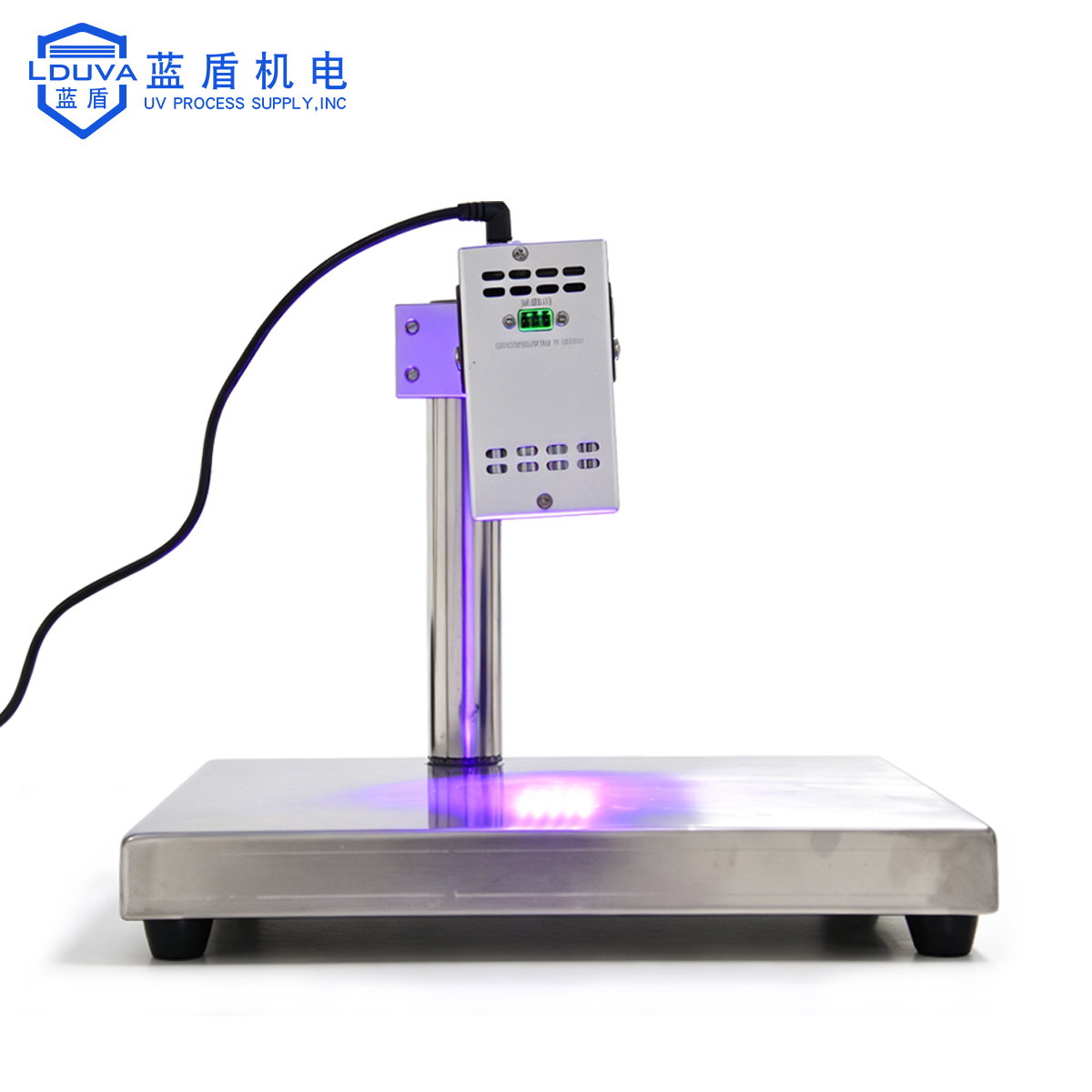

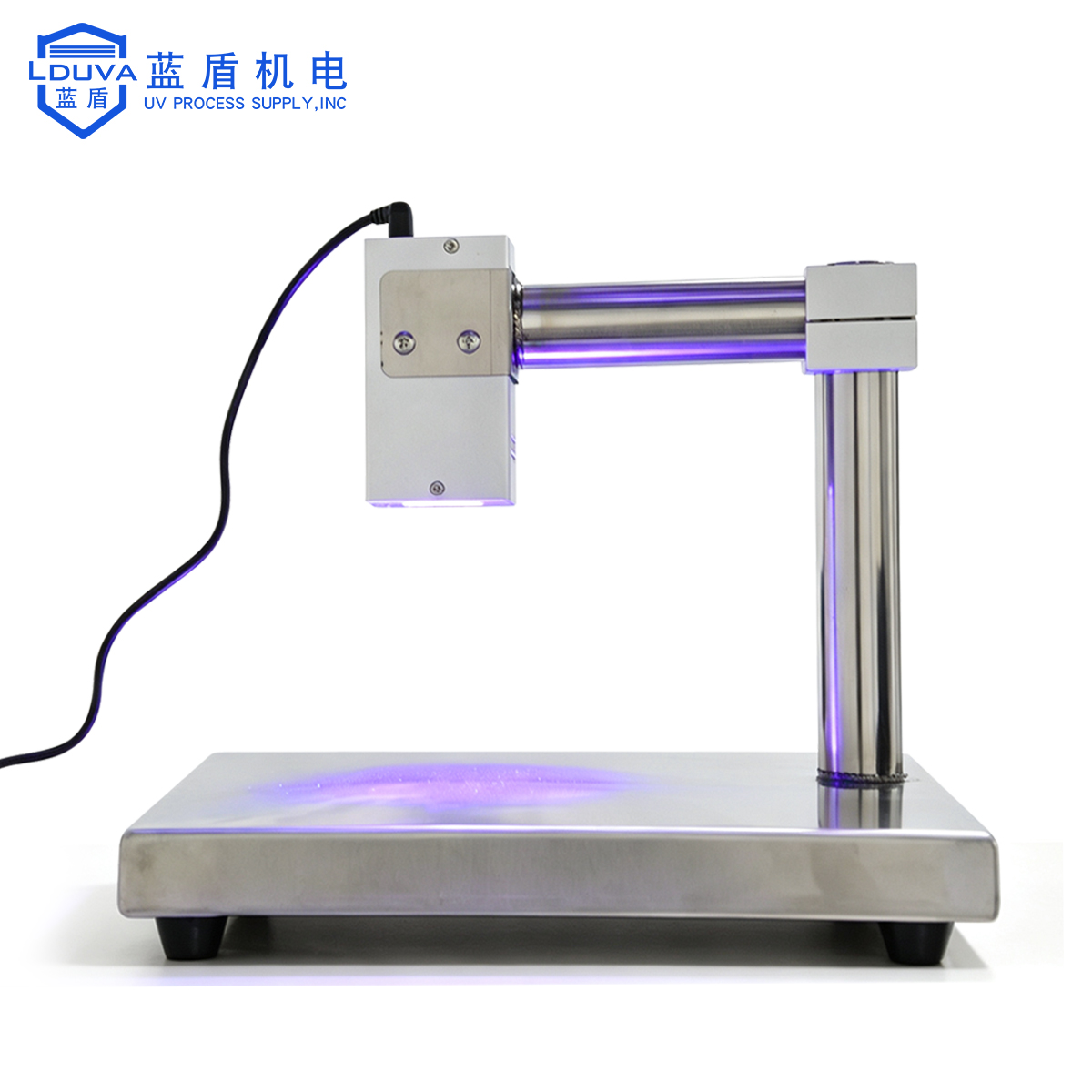

Fixed platform: adjustable fixed bracket platform, eliminating handheld operation.
-
Efficient curing: 365nm UVLED curing lamp, with a precise light spot positioned on the PCB repair area.
-
Intelligent control: digital tube displays power, temperature, and time; button operation is convenient and intuitive.
-
Adjustable power: 10–100 levels of stepless adjustment, adapting to different adhesive types and curing depth requirements.
-
Timed curing: can be set to constant-on or 0–999 seconds; single-trigger countdown avoids human operation errors.
-
Dual protection: over-temperature protection threshold is adjustable; automatic power-off and alarm when over-temperature occurs; when the set temperature is exceeded, the output is turned off and the digital tube displays - - -, requiring power-off to reset.
-
Cold light source: LED cold light source has no infrared heat radiation; instant-on with no warm-up required.
-
Control mode: local button control or external start/stop control.
-

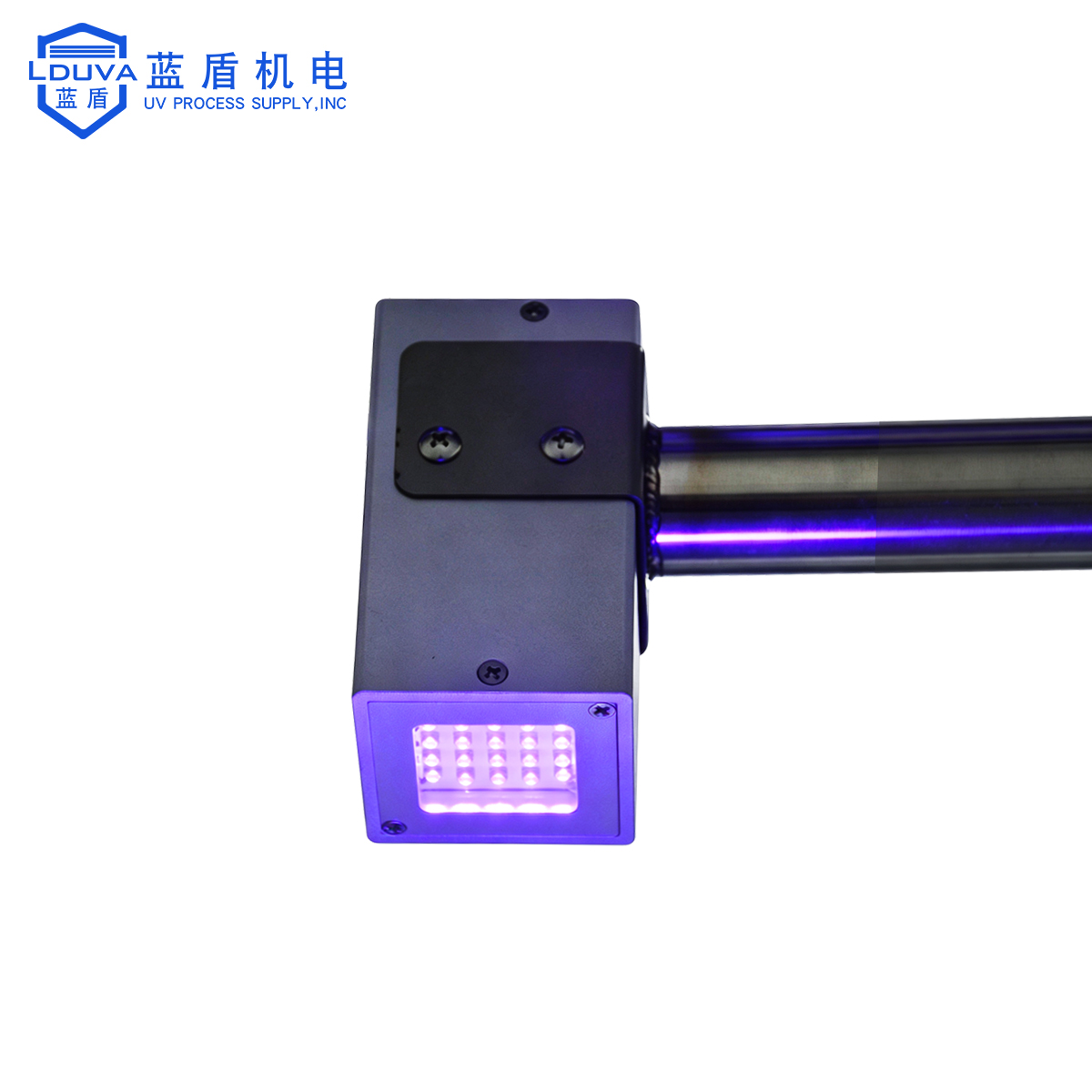

Two-in-one use: the lamp head can be detached for handheld use; when mounted on the bracket, it becomes fixed-point workstation curing equipment.
Typical Applications：
-
Local repair of PCB solder mask.
-
Curing of PCB repair and component protection adhesives.
-
UV adhesive bonding of electronic components.
-
Laboratory and small-batch sample processing.
Product Technical Parameters：
| Item |
Parameter |
| Overall Dimension |
L300 × W300 × H250 mm |
| Work Table |
300×300 mm stainless‑steel base with anti‑slip rubber feet |
| Vertical Travel Range |
0‑200 mm |
| Horizontal Cantilever Travel Range |
0‑150 mm |
| Locking Method |
Hand‑tighten screws with cross‑clamping blocks, angle fine‑tuning supported |
| Lamp Head Dimension |
L100 × W55 × H55 mm |
| Effective Emitting Area |
30×30 mm |
| Light Intensity (at 0 cm) |
2800 mW/cm² |
| LED Configuration |
25 pcs (5 parallel, 5 series) |
| Rated Power |
Approx. 60 W |
| Wavelength |
365 nm; customizable 385/395/405 nm |
| Lamp Head Net Weight |
350 g |
| Power Supply |
AC 100‑240V input, DC 24V＞3A adapter |
| Control Mode |
Local key control / External trigger control |
| Display |
Digital tube cyclic display: Power(P), Time(S), Temperature(C) |
| Operation Keys |
【+】,【OK】,【‑】 3‑key control |
| Power Adjustment |
10‑100% stepless adjustable |
| Delay Timer Range |
0‑999 s configurable |
| Temperature Sensor |
10K NTC probe |
| Over‑Temperature Protection |
50‑80℃ adjustable, default 60℃; display "‑‑‑" upon trigger, reset by power‑cycle |
| Cooling Method |
Intelligent temperature‑controlled air cooling fan |
| Rated LED Service Life |
Approx. 15 000 hours |
Whether it's selection consultation, technical issues, or customization needs, wavelength, spot size, power, control mode - can be customized according to needs.
Welcome to contact us, our team is always at your service.
