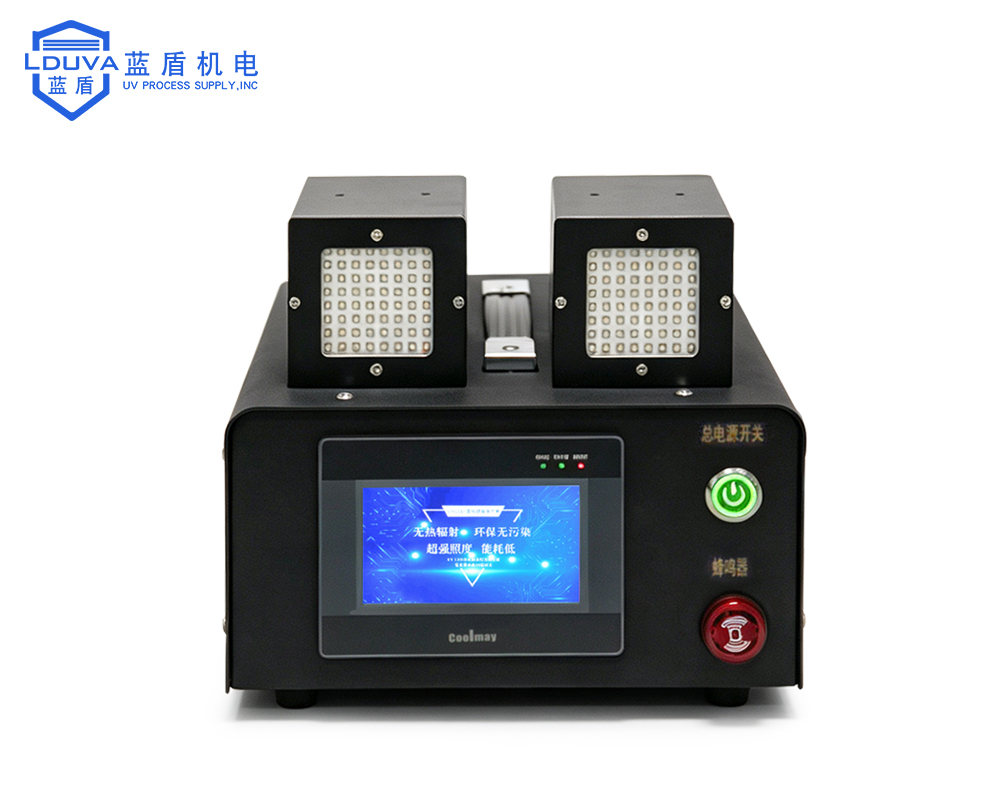

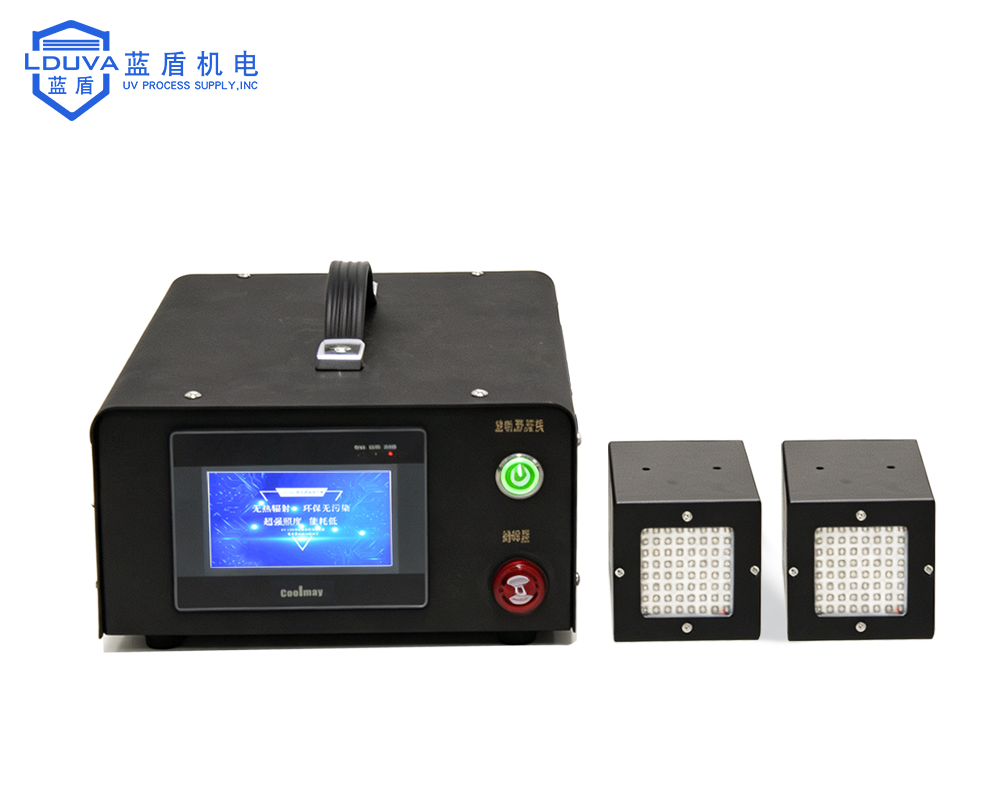

This product uses a 365 nanometer UV LED environmentally friendly low-temperature light source, with one electrical box controlling two lamp heads. Its core has a 50 * 50mm luminous area, which can generate high brightness ultraviolet rays and has a long service life. It is designed specifically for small area, high-precision local curing and bonding scenarios.
Product Features:
365nm UV wavelength, compatible with most UV adhesives for circuit bonding and curing applications.
High-performance LED chips and optimized optical design deliver high intensity and excellent uniformity.
Dual LED heads that can operate independently or simultaneously, providing a flexible and efficient layout.
Extended service life with near-zero maintenance costs.
Air-cooled heat dissipation – no need for external water chillers or air compressors.
PLC touchscreen control supporting Local mode, RS232 communication, and I/O external control.
Step-mode curing support with programmable intensity and time settings for each stage.
Application Scenarios:
Electronics Industry: FPC reinforcement, camera module assembly, component bonding.
Medical Industry: Catheter assembly, syringe bonding, hearing aid manufacturing.
Optics Industry: Lens bonding, fiber optic connector assembly.
Suitable for both laboratory sampling and batch production.
Technical Parameters：
| Category | Item | Parameter |
|---|---|---|
| UV LED Irradiation Head | LED Type | Ultraviolet LED |
| Dimensions (L×W×H) | 135×80×80 mm | |
| Irradiation Area | 50×50 mm | |
| Wavelength | 365 nm | |
| Peak Irradiance (at 0cm) | ≥4000 mW/cm² | |
| Cooling Method | Air-cooled | |
| Power per Head | 250W | |
| Service Life | 15,000 hours | |
| No. of Heads | 2 (customizable) | |
| Storage Environment | Temperature / Humidity | -10~60°C / 30%~85% RH (non-condensing) |
| Controller | Dimensions (L×W×H) | 360×250×130 mm |
| Material | Aluminum, sandblasted, black hardened finish | |
| Power Cord | Standard 3.5m (customizable) | |
| Output Power Adjustment | 10–100% | |
| Control Modes | Control Interface | Touchscreen |
| I/O Terminal Control | Supported | |
| RS232 Control | Supported | |
| Manual Switch / Constant On | Supported | |
| Irradiation Modes | Timer Stop | 0.1–999.9s settable |
| Step Mode | 1–8 steps with independent power & time settings | |
| Power Supply | Voltage / Frequency | AC 220V, 50/60Hz |
Professional service guarantee
Landun Electromechanical is committed to providing customers with full lifecycle service support. The entire machine comes with a one-year warranty (excluding vulnerable parts), and our technical service team is always on standby to ensure the stable operation of your equipment. From installation and debugging to daily maintenance, we provide full technical guidance to ensure your continuous and efficient production.
Welcome to contact us, and we will recommend the most suitable curing solution for you based on your specific application needs.
