Traditional UV curing methods commonly suffer from pain points such as uneven irradiation, limited coverage of a single lamp, poor heat dissipation, short lifespan, and difficulty in integrating large-scale production line modifications.
Especially in UV ink curing, PCB green oil exposure, electronic component bonding, and plastic coating processes, stable and reliable curing quality is crucial.
Our company's one to ten water-cooled 395nm UV-LED surface light source curing system has been developed specifically to address the aforementioned practical production pain points. The device integrates multiple independent controls, efficient water cooling and heat dissipation, and high gloss uniformity output, providing stable and repeatable curing effects for large-scale production.
Product Features：
10 independent UV-LED lamp heads, each set can be independently switched, and the power can be adjusted from 1 to 100%.
395nm high light intensity, light intensity ≥ 10000 milliwatts per square centimeter, rapid cold curing in 1-3 seconds.
High performance water-cooled cooling solution, equipped with over temperature alarm protection, ensuring long-term stable operation of the equipment.

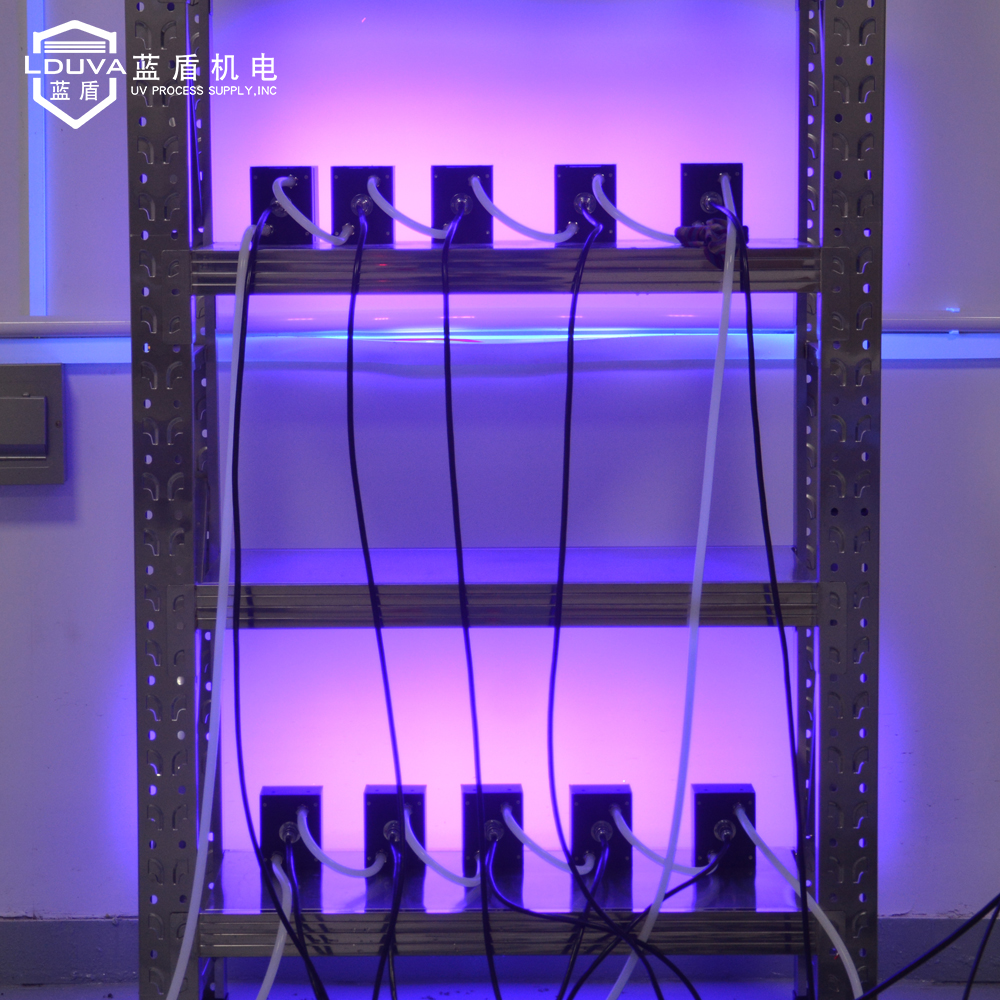

Supports multiple installation methods for ceilings/brackets.
The lifespan of LED can reach 15000 hours.
Mercury free and ozone free cold light source, protecting thermal sensitive substrates.
| Parameter | Details |
|---|---|
| System Configuration | |
| Model | LDLW-68C50782402 |

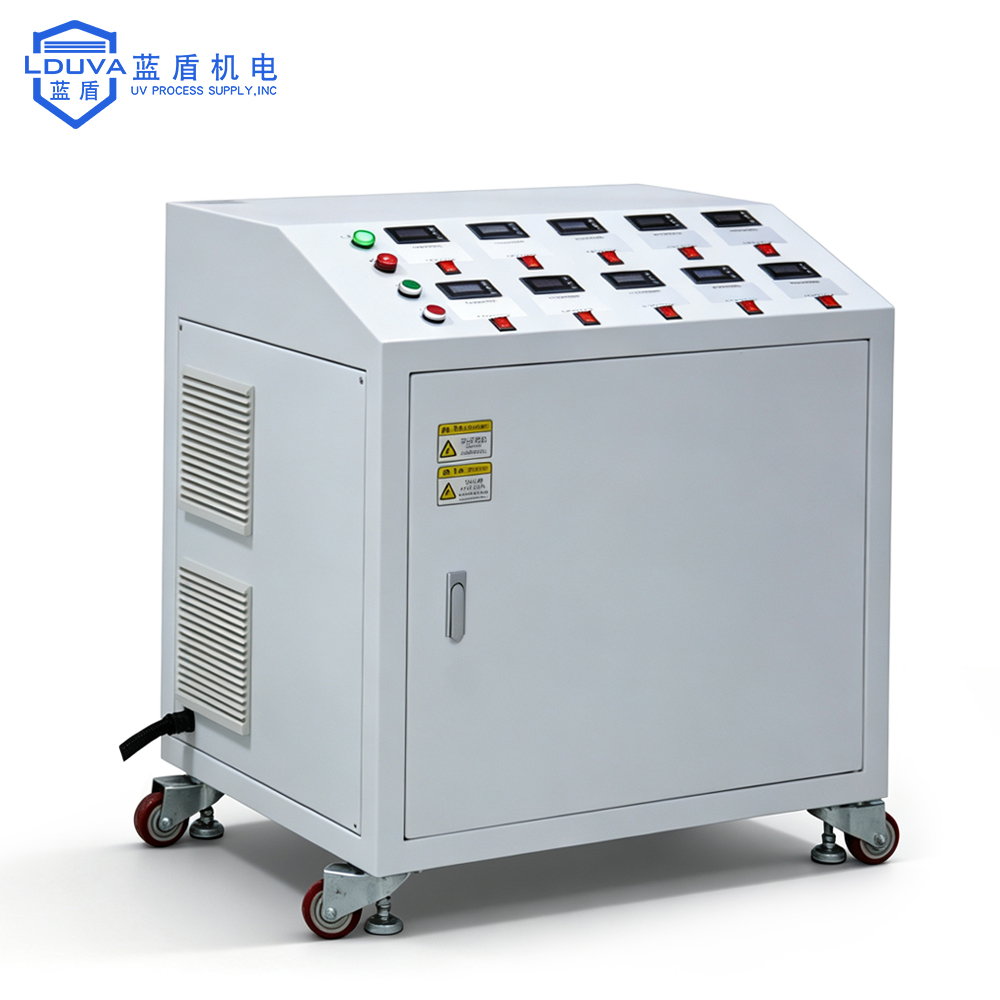

| System Composition | Control Cabinet ×1 + UV LED Lamp Heads ×10 + Water Chiller ×1 |
| Total Power | 10KW |
| Input Voltage | AC 380V, 50Hz |
| UV LED Lamp Heads | |

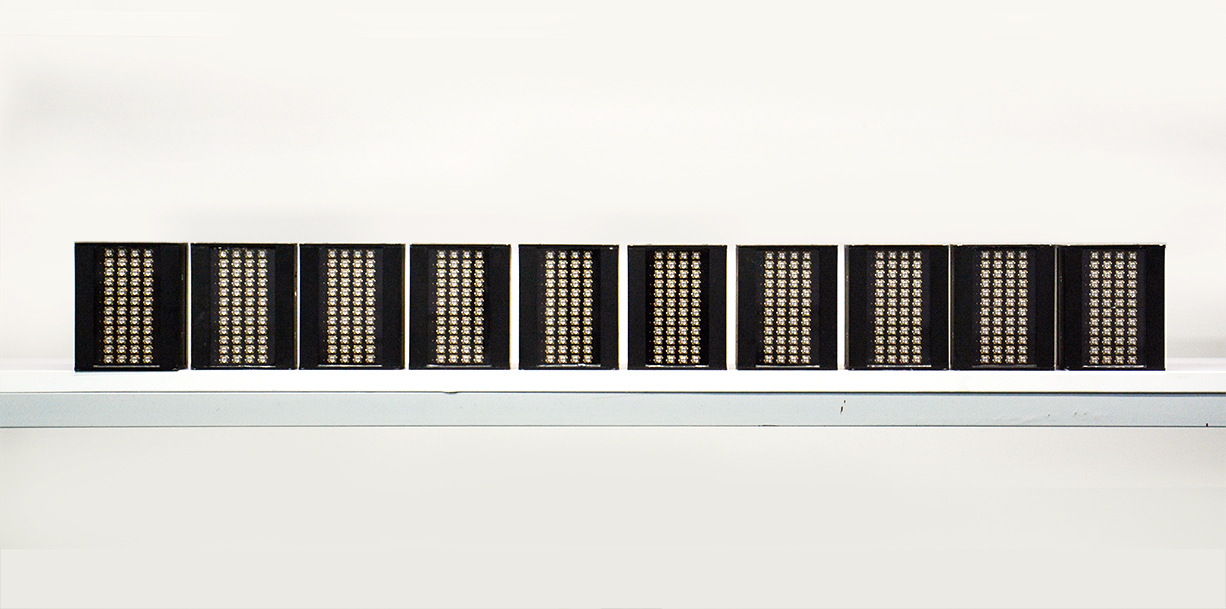

| Number of Lamp Heads | 10 lamp heads (independently controllable for on/off and power) |
| Single Lamp Dimensions (W×D×H) | 110 × 87 × 65 mm (excluding aviation connector) |
| Single Lamp Illumination Area | 100 × 40 mm |
| Wavelength | 395 nm |

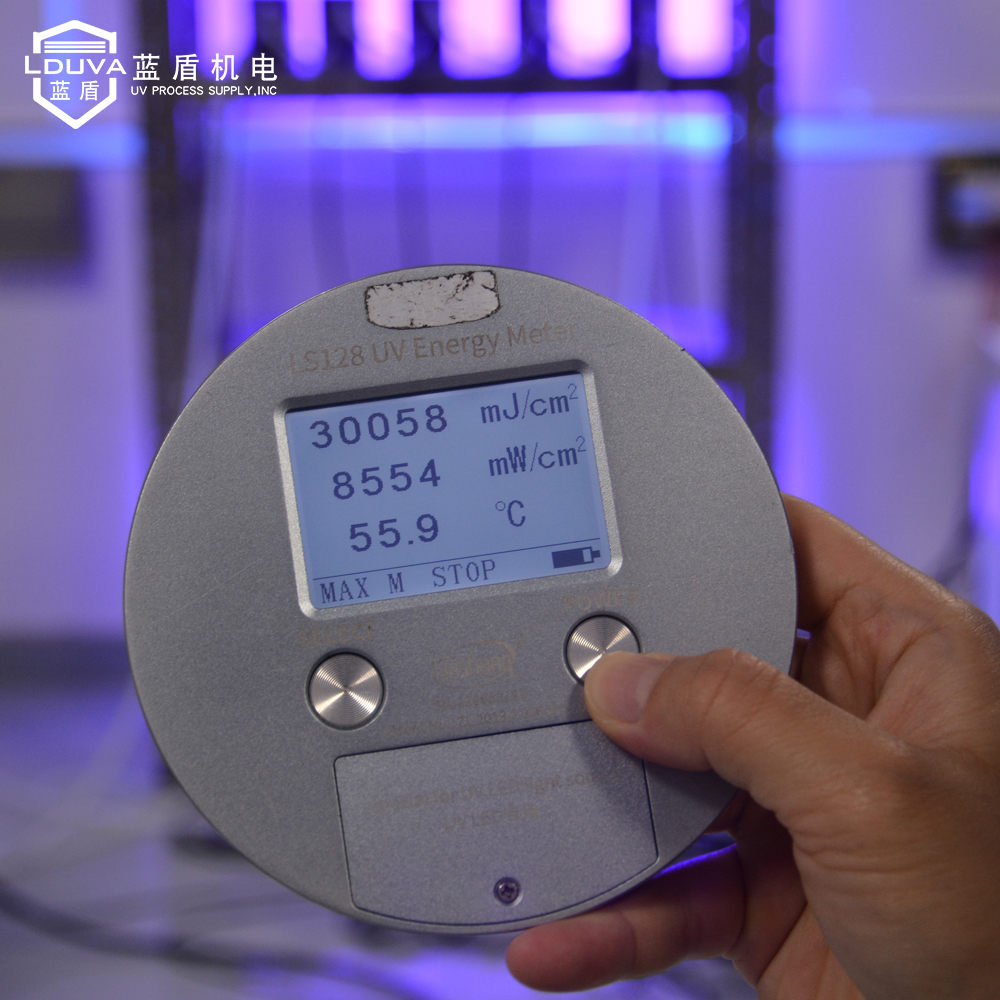

| Light Intensity (at 0cm distance) | ≥ 10000 mW/cm² |
| Power Adjustment Range | 1% – 100% adjustable |
| Cooling Method | Water-cooled |
