Water-Cooled UV LED Curing Lamp for Metal Screen Printing Inks
This device adopts a UV LED environmentally friendly low-temperature light source, which has the advantages of high energy and low temperature. It can achieve rapid curing in 1-3 seconds and is suitable for the curing process of UV ink and varnish. It is widely used for the printing and curing of logos, patterns, and text on the surface of metal products such as iron, aluminum, and steel plates.
Aug 21st,2026
6 Views
In the screen printing and industrial coating industries, fast curing speed and no damage to the substrate are the core advantages of the equipment. Nowadays, traditional mercury lamps are gradually being phased out, and factories urgently need efficient, low-temperature, and environmentally friendly alternative solidification equipment.

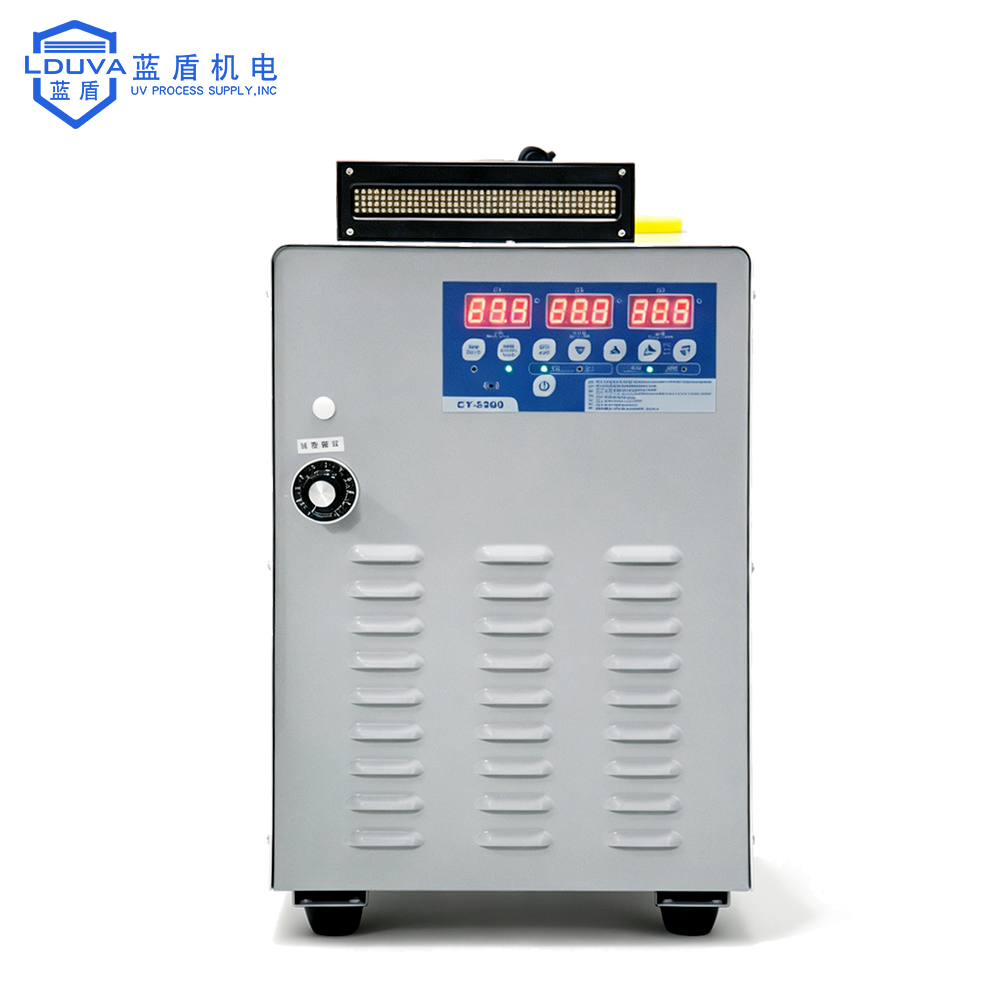

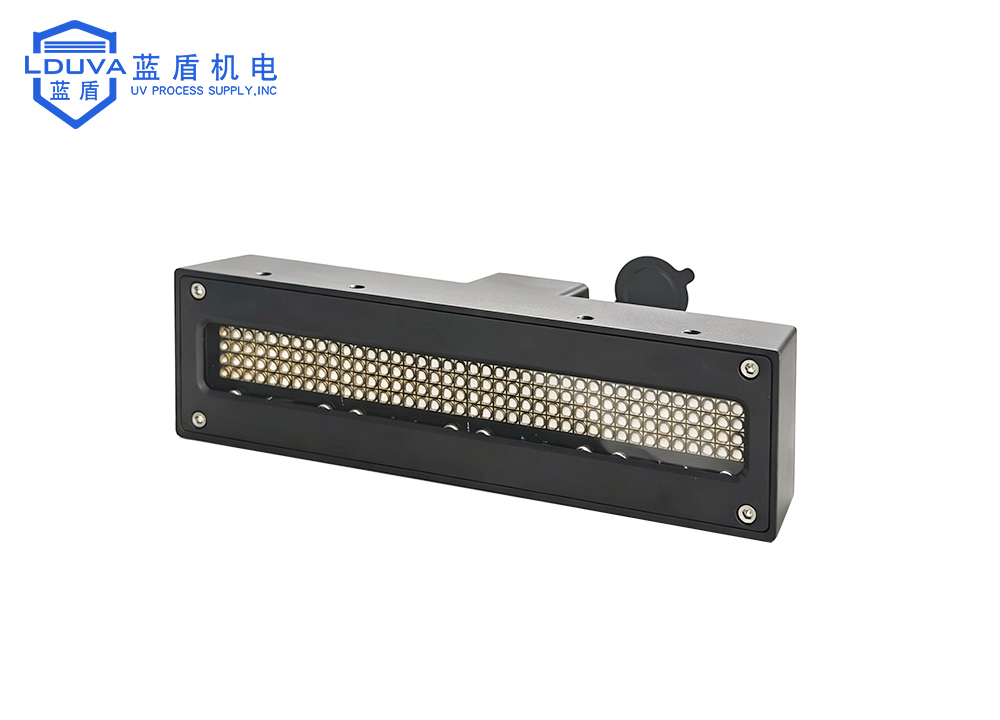

To this end, we have launched a new 160 × 18mm water-cooled UV LED surface light source. This curing lamp combines high power output with a compact body, making it an ideal equipment for upgrading production lines.
It is specifically suitable for metal halide screen printing UV ink and various UV coatings, with fast curing speed and uniform light exposure; Low temperature water cooling design can fully protect substrates that are not resistant to high temperatures, and prevent defective products such as high-temperature deformation and ink cracking.
Key Features:
-
Ultra-high intensity 395nm wavelength UV light – effectively penetrates most screen-printing UV inks to achieve deep curing, ensuring strong adhesion of the ink onto metal surfaces and passing various performance tests.
-
Efficient water-cooling system with stable temperature control – supports industrial-grade 24/7 continuous operation without performance degradation.
-
Adjustable power output – adapts to different process requirements for versatile application.
-
Instant on/off, no warm-up time – significantly improves production efficiency and reduces standby energy consumption.
-
Long-life, eco-friendly light source – mercury-free and ozone-free, ensuring a safer working environment.
-
Intelligent over-temperature alarm – built into the efficient water-cooling system for automatic protection against overheating.
-
Flexible mounting options – supports ceiling suspension or bracket installation for easy integration into existing production lines.
Typical application scenarios
Screen printing: cosmetic packaging, container decoration, graphic panels and labels.
Industrial coating: UV coating curing on metal, wood, and plastic surfaces.
Electronic Manufacturing: Protective Coatings and Adhesive Curing for Precision Electronic Components.
Product Technical Parameters：
| Item |
Specification |
| Model |
LDLW-35C40314004-55 |
| External Dimensions |
180(L) × 50(W) × 170(H) mm (excluding aviation connector) |
| Irradiation Area |
160 × 18mm |
| Lamp Head Power |
1.2KW |

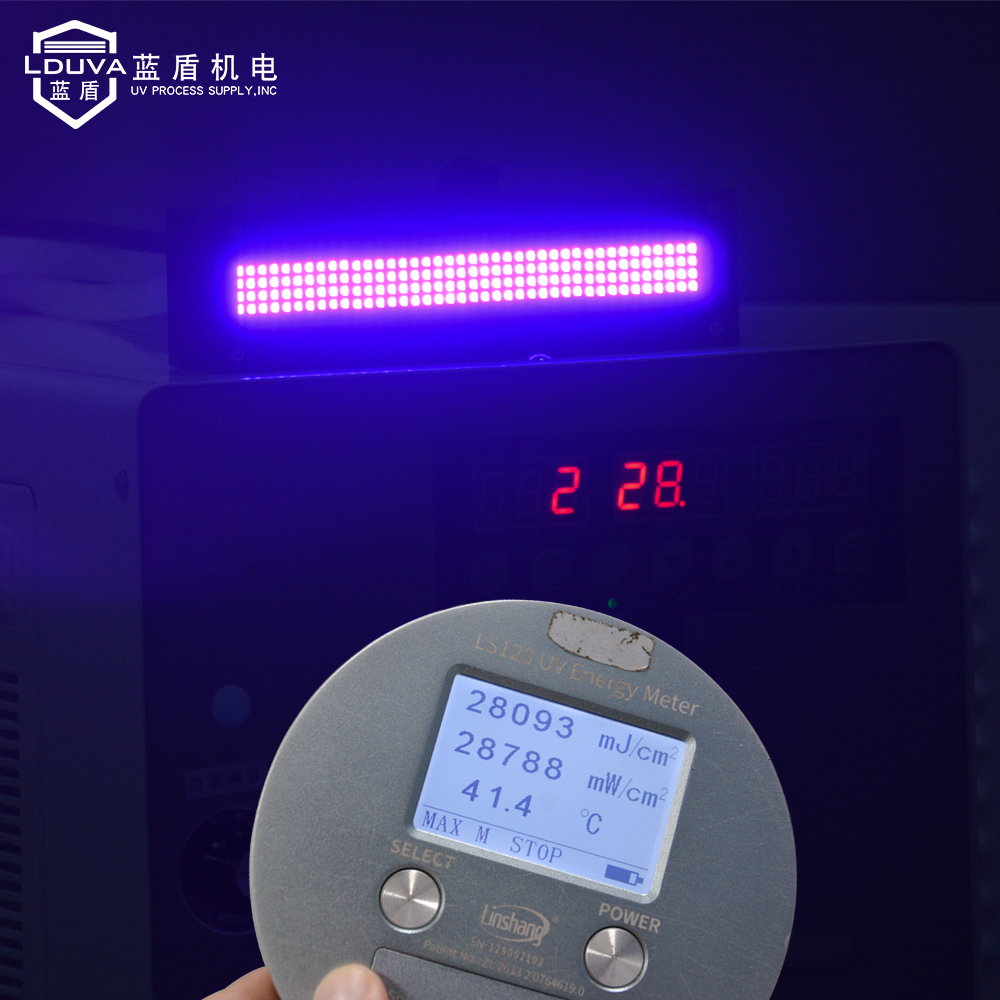

| Light Intensity (at 0cm distance) |
≥25,000 mW/cm² |
| Wavelength |
395nm |
| Cooling Method |
Water-cooling |
| Power Adjustment Range |
1~100% continuously adjustable |
| Input Power Supply |
AC 220V ~ 50/60Hz |
| Safety Features |
Real-time lamp head temperature monitoring with automatic over-temperature alarm |
